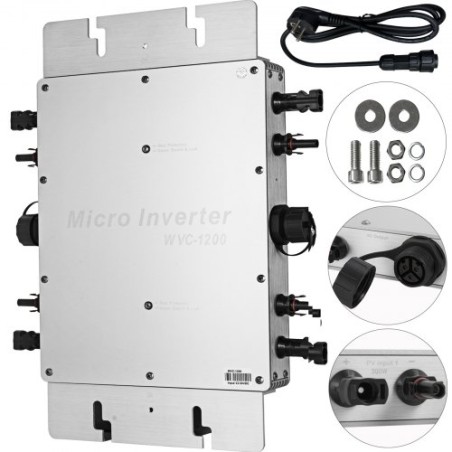

1200W Power Inverter MPPT Waterproof Solar Grid Tie Inverter DC to AC 220V Micro Inverter(1200W/220V)
VEVOR 1200W Power Inverter MPPT Waterproof Solar Grid Tie Inverter DC to AC 220V Micro Inverter(1200W/220V)
High Automation
Stable Dual Channel Technology
Digital Control
IP65 & Aluminum Material
Easy To Use
Wide Usage
Peak power output: 1200W,Peak power tracking voltage: 28-40V,Output power: 220V AC,Cooling: Self-cooling,Operating voltage range: 22-50V,Nighttime power consumption: <1W,Recommended input power: 1200W,Min/Max start voltage: 22-50V,Rated frequency range: 47-52.5 Hz,Static MPPT efficiency: 99.5%,THD: <5%,Recommend the use of PV modules: 4 x 300W, 30-50VOC,Maximum input current: 54.4A,Maximum units per branch circuit: 6pcs (Single-phase),Ambient temperature: -40 to 60 ℃,Maximum output efficiency: 92.5%,Operating temperature range(inverter inside) : -40 to 82 ℃,Maximum DC short current: 80A,Rated voltage range: 180-260VAC,Power factor: >99%,Rated output power: 1150W,Rated output current: 5A,Waterproof rating: IP65,Maximum input DC voltage: 52V
High Automation
Stable Dual Channel Technology
Digital Control
IP65 & Aluminum Material
Easy To Use
Wide Usage
Peak power output: 1200W,Peak power tracking voltage: 28-40V,Output power: 220V AC,Cooling: Self-cooling,Operating voltage range: 22-50V,Nighttime power consumption: <1W,Recommended input power: 1200W,Min/Max start voltage: 22-50V,Rated frequency range: 47-52.5 Hz,Static MPPT efficiency: 99.5%,THD: <5%,Recommend the use of PV modules: 4 x 300W, 30-50VOC,Maximum input current: 54.4A,Maximum units per branch circuit: 6pcs (Single-phase),Ambient temperature: -40 to 60 ℃,Maximum output efficiency: 92.5%,Operating temperature range(inverter inside) : -40 to 82 ℃,Maximum DC short current: 80A,Rated voltage range: 180-260VAC,Power factor: >99%,Rated output power: 1150W,Rated output current: 5A,Waterproof rating: IP65,Maximum input DC voltage: 52V
